Aluminium Fencing



Aluminium Fencing

Frame
Aluminum Powder Coated (* using Dupont/ Jotun premiump ainting coating)

Aluminum Lourves Profile
2’’, 3’’, 4’’,5’’, 6’’

Function
Static

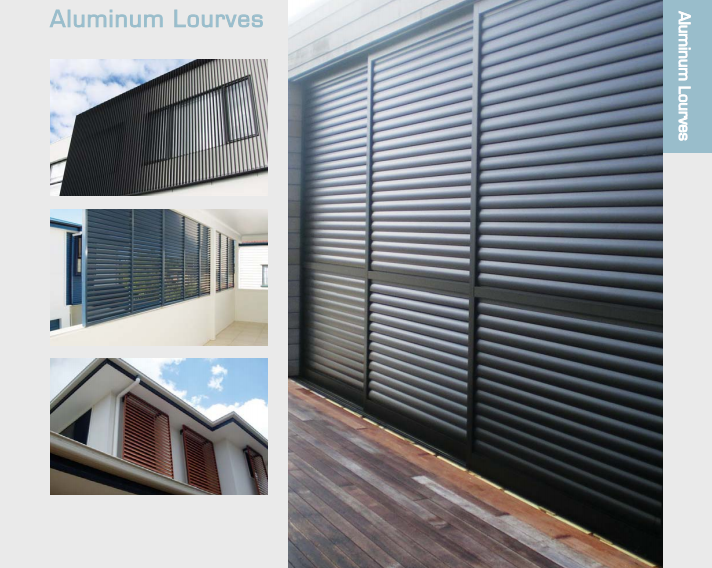

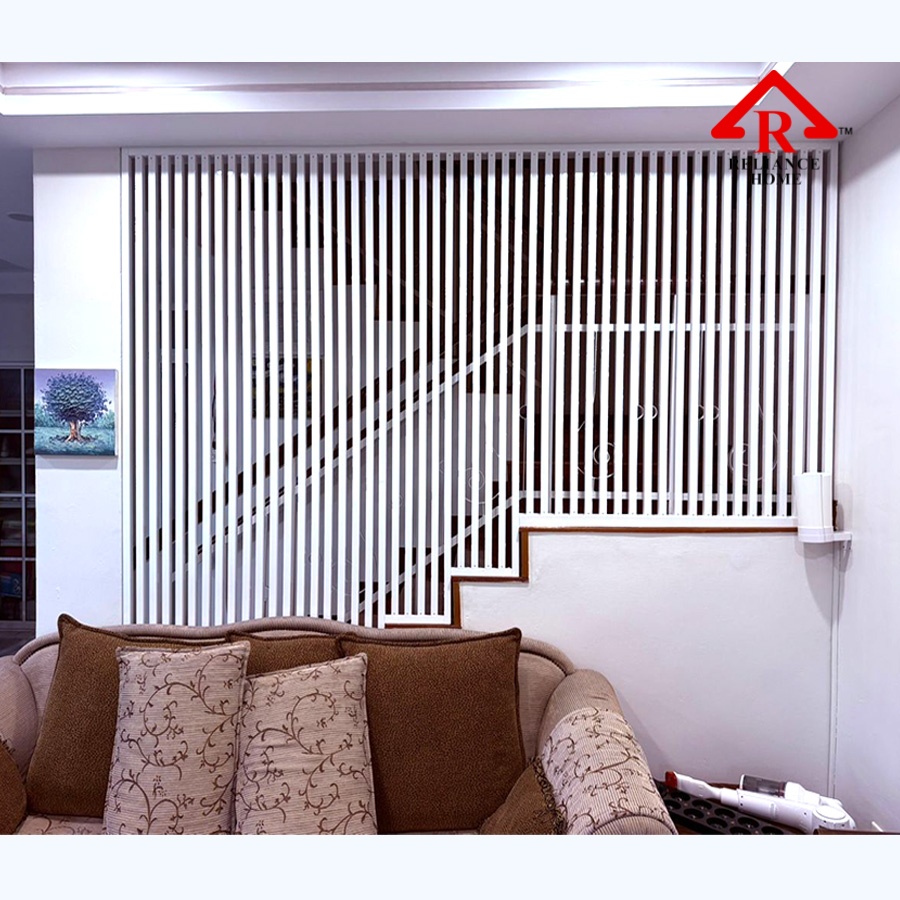

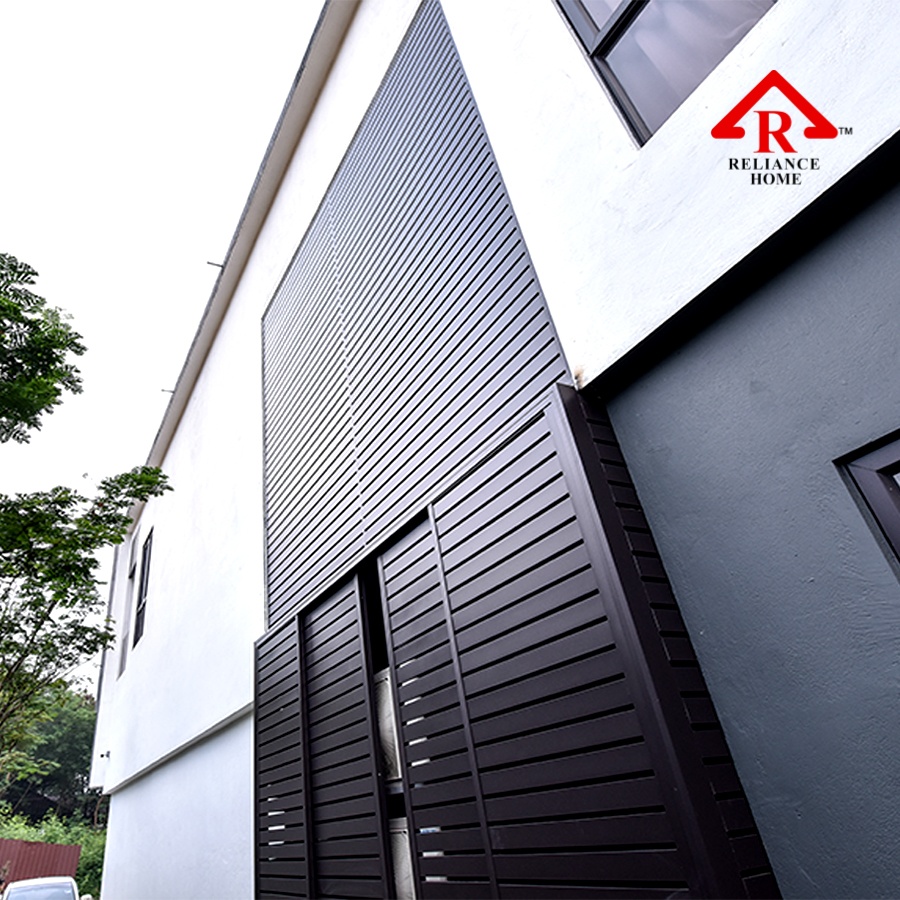

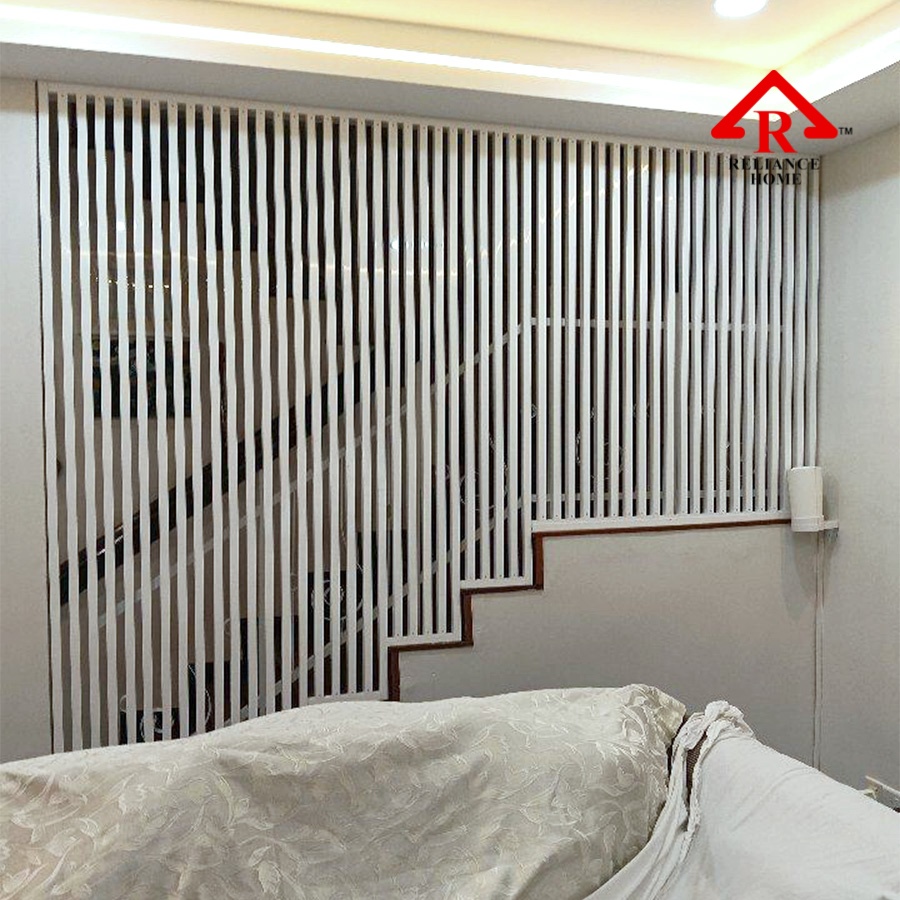

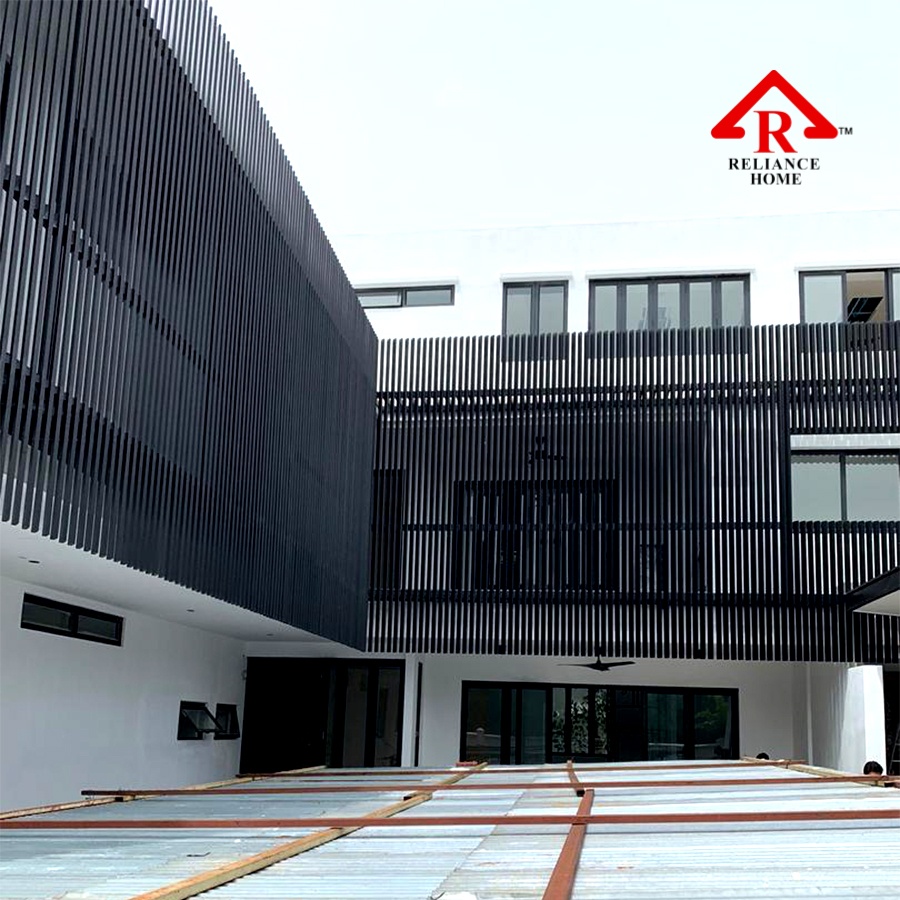

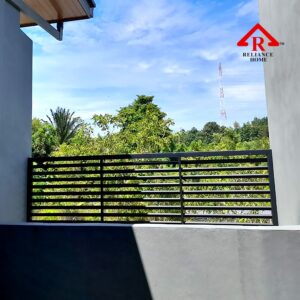

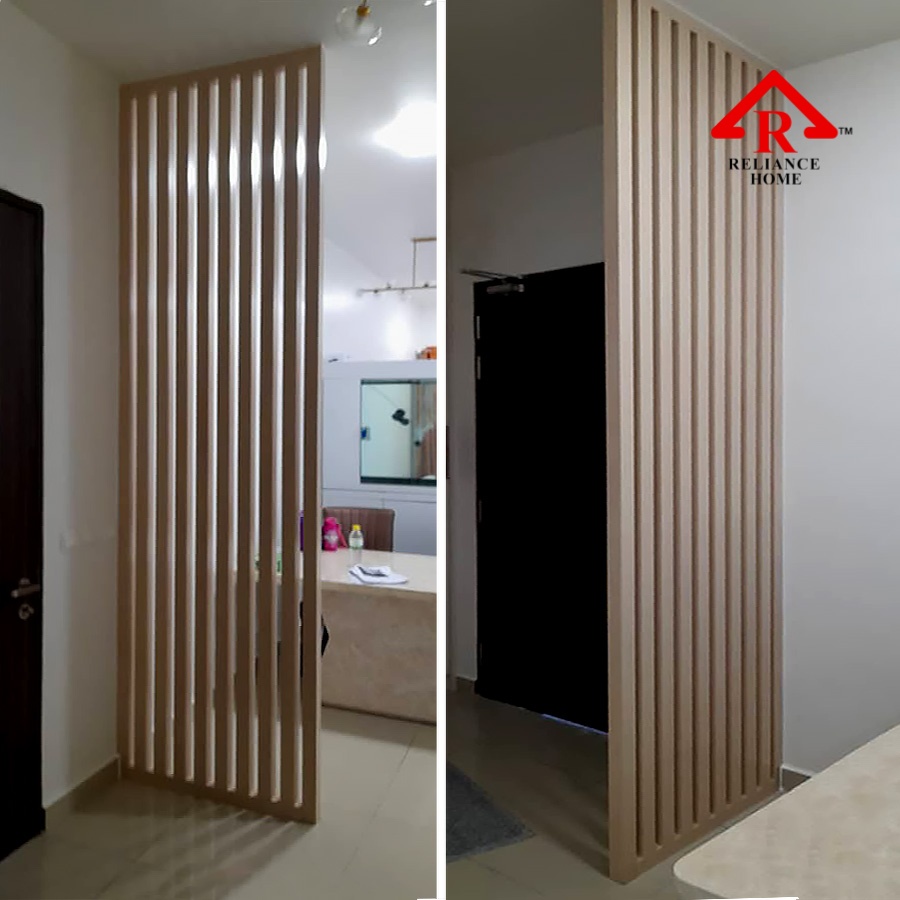

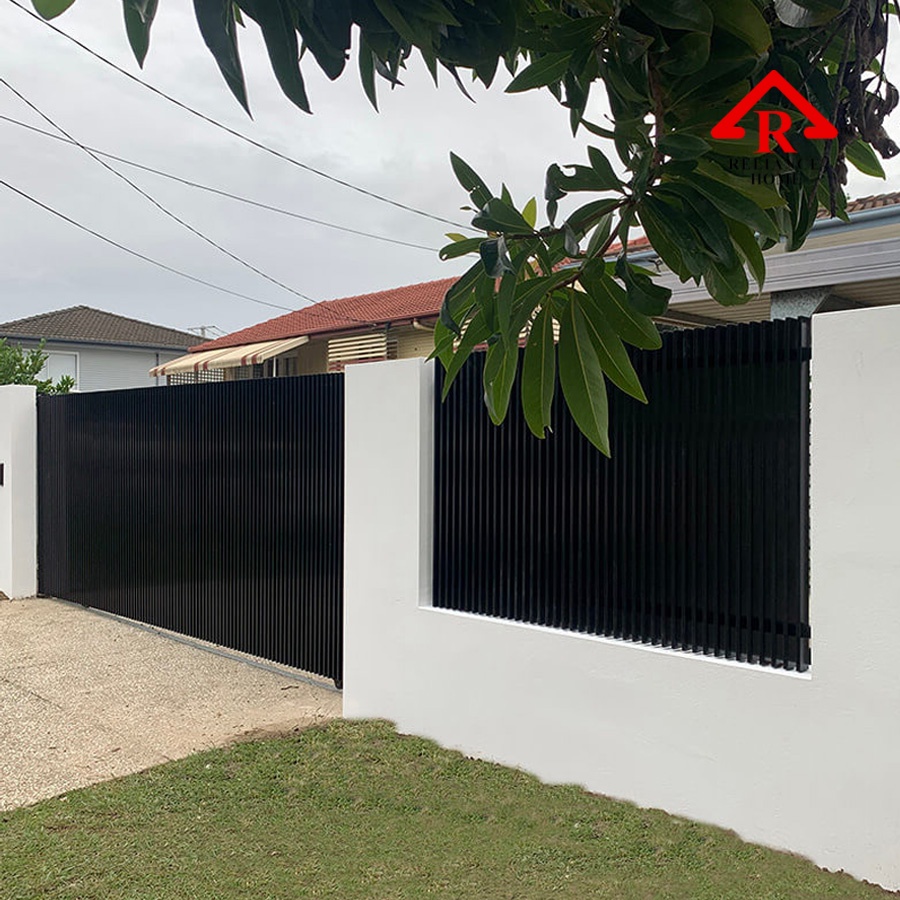

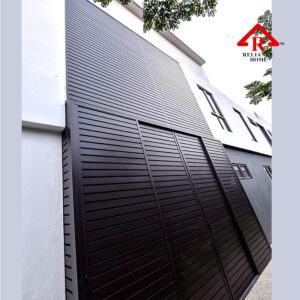

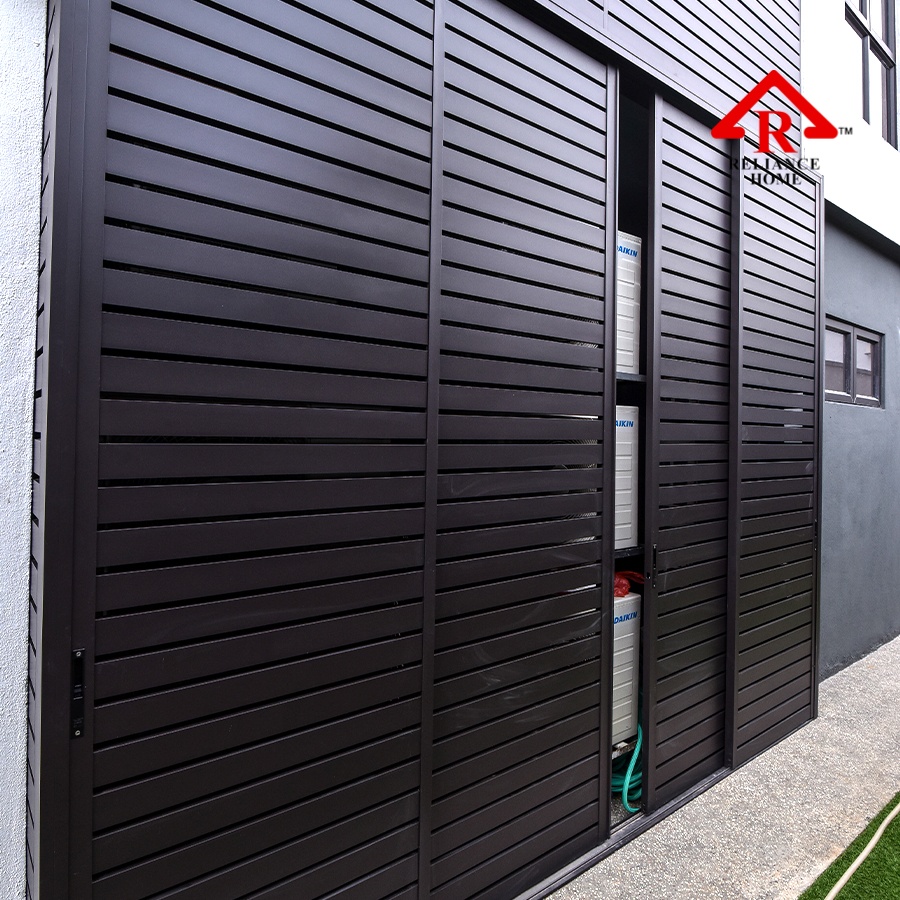

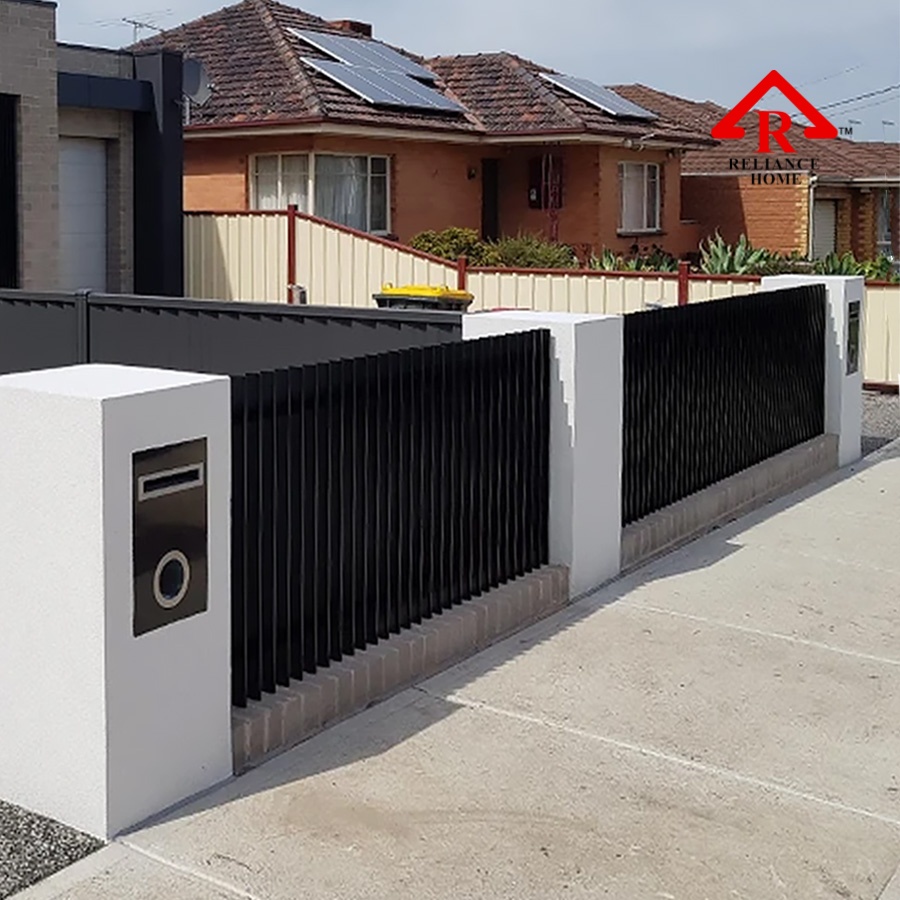

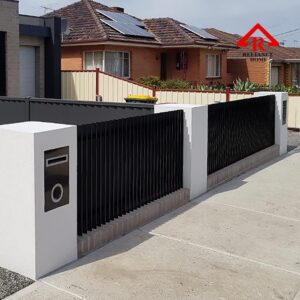

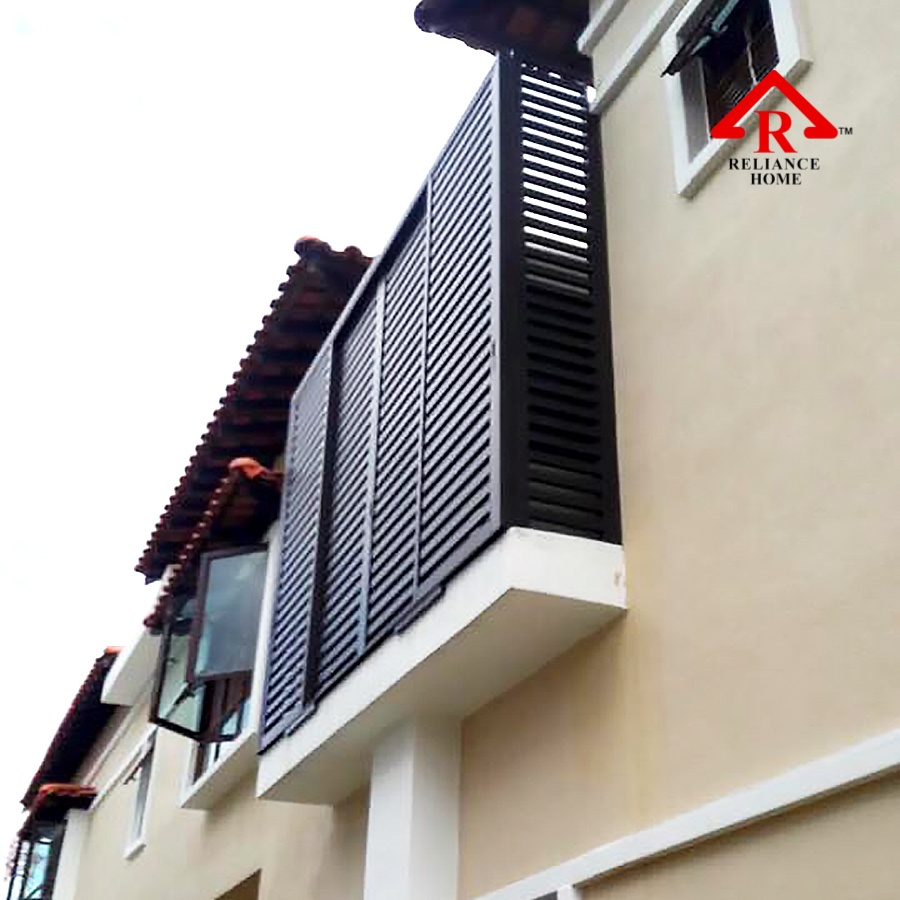

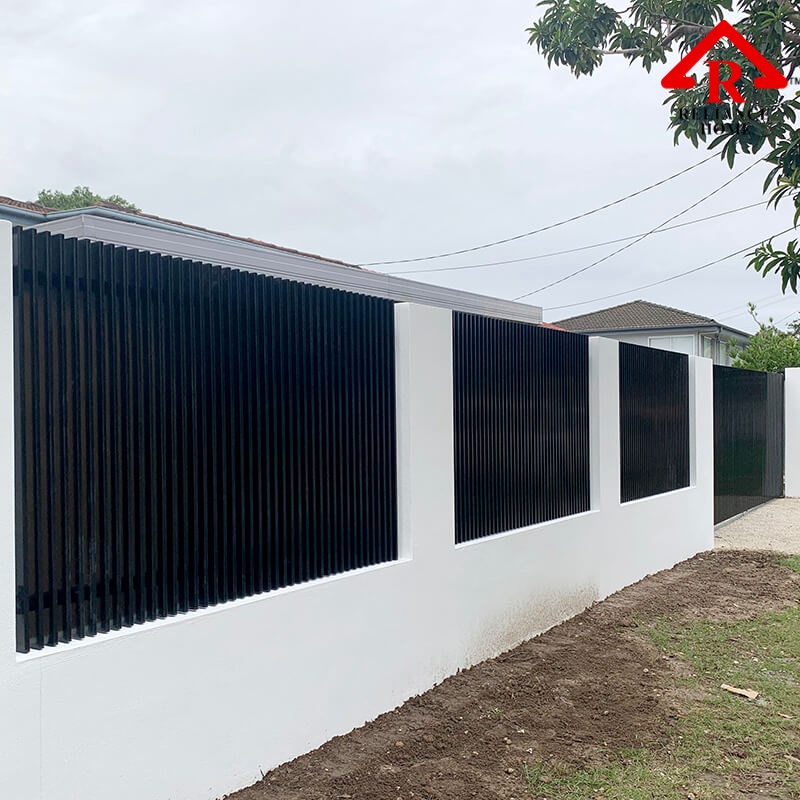

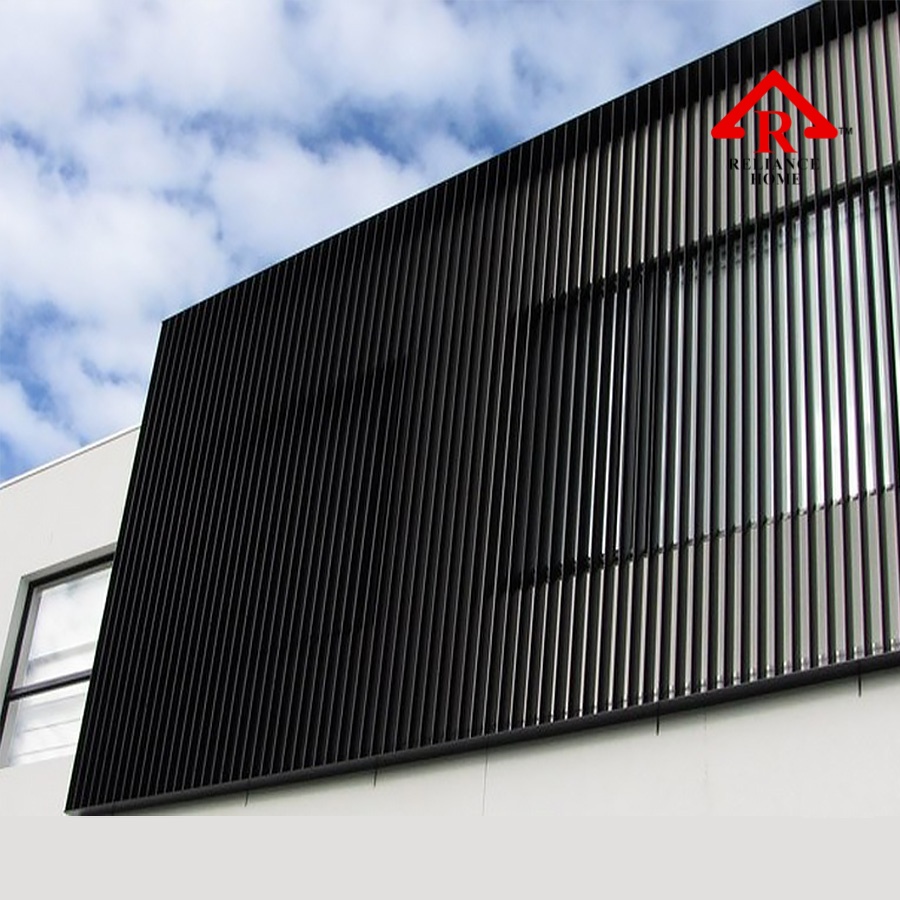

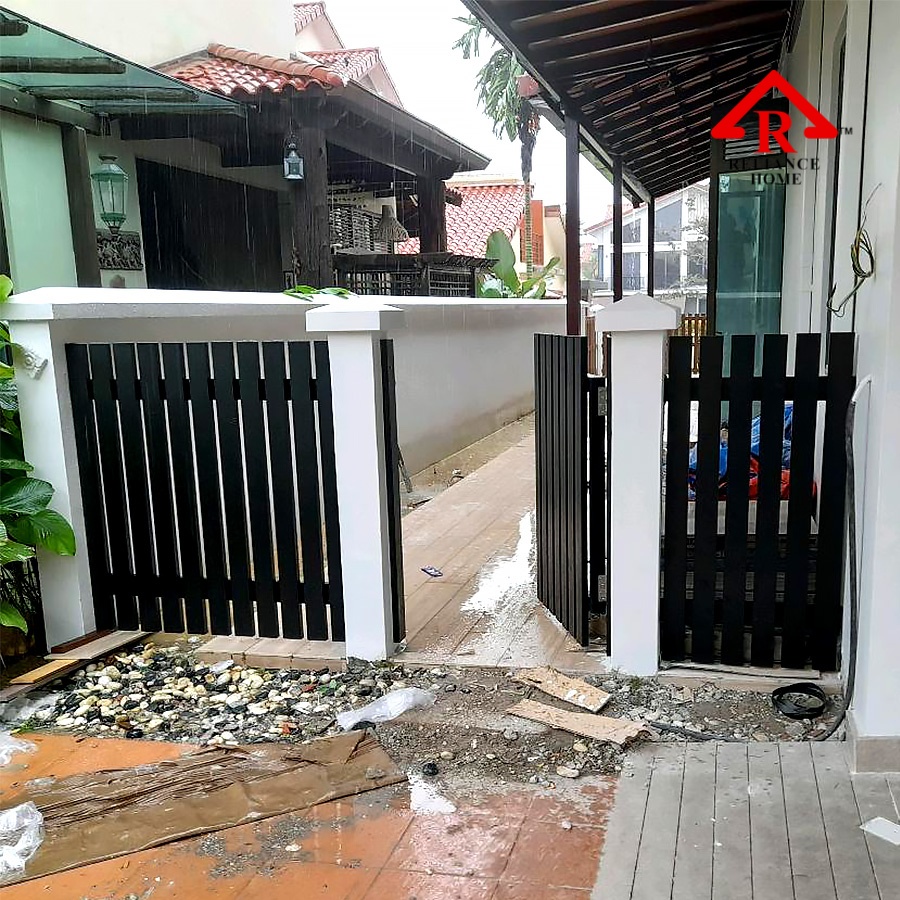

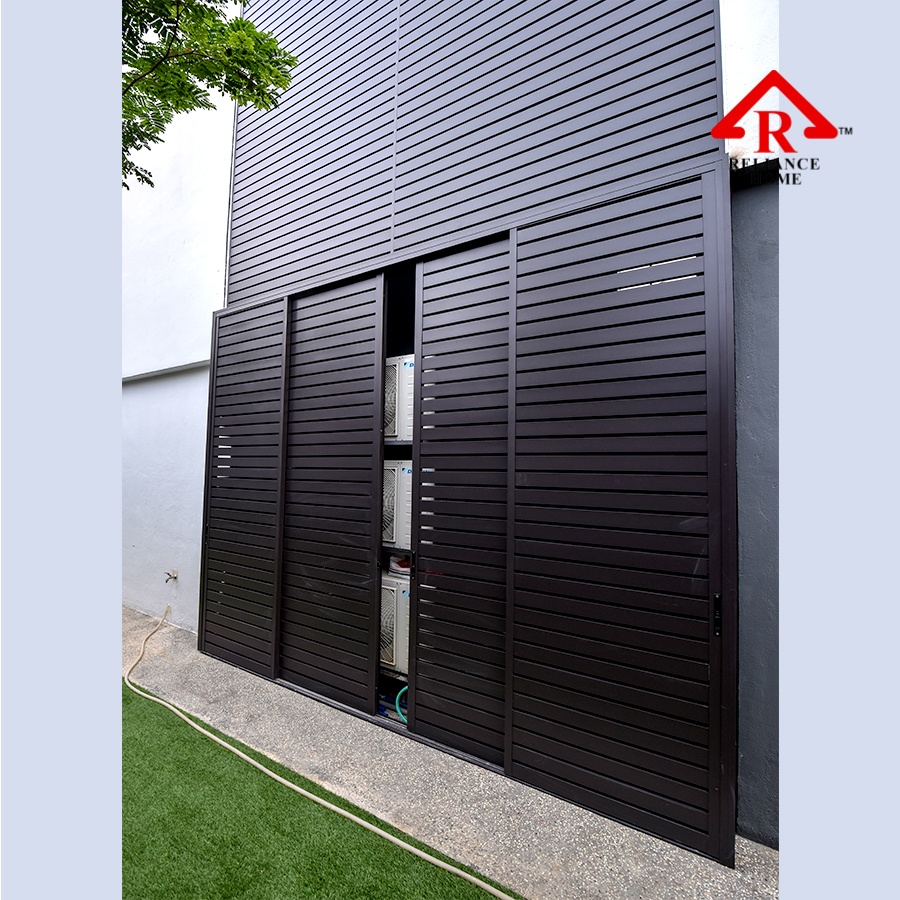

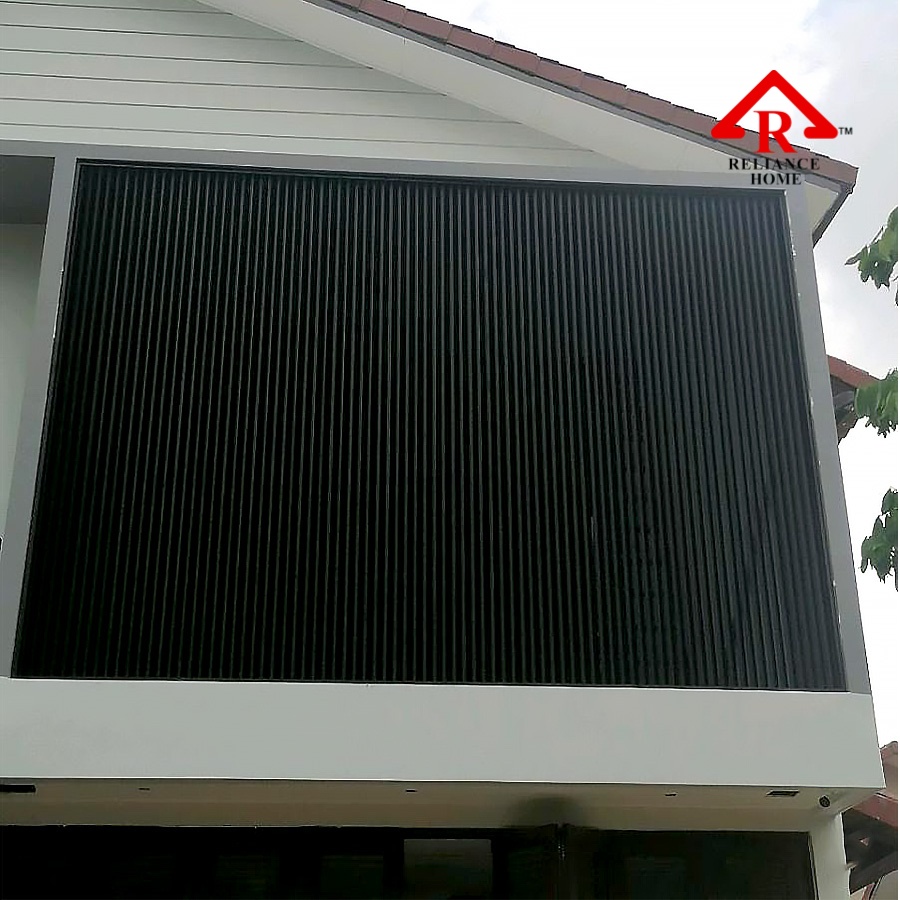

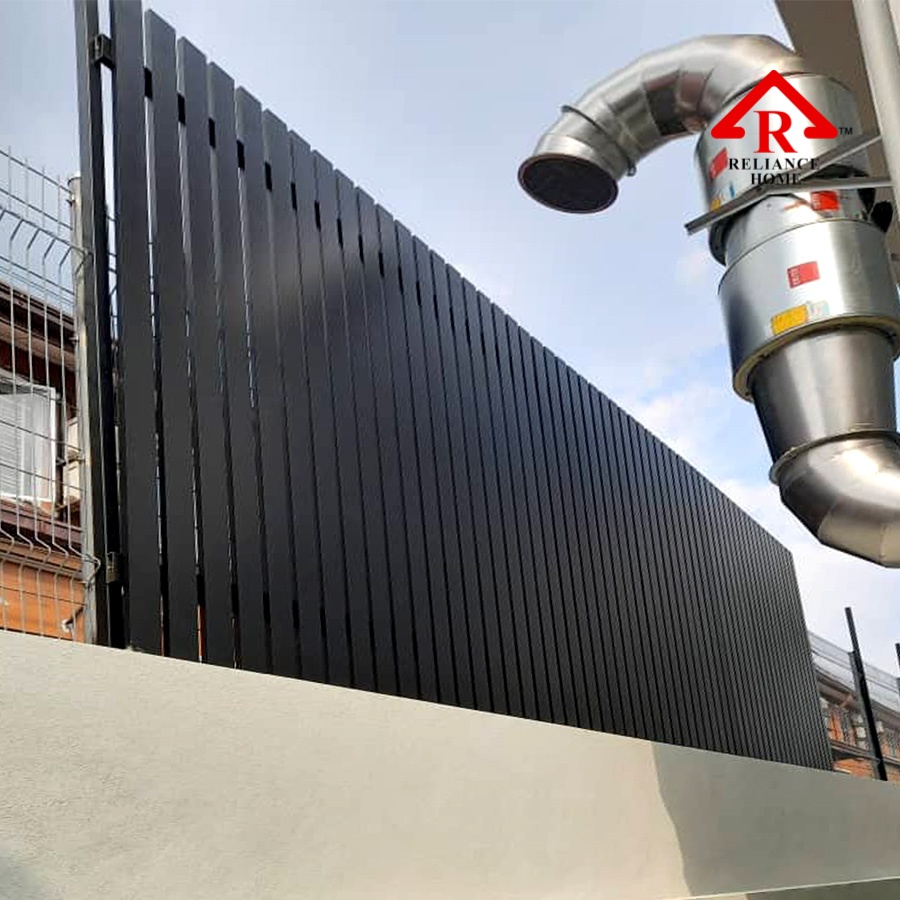

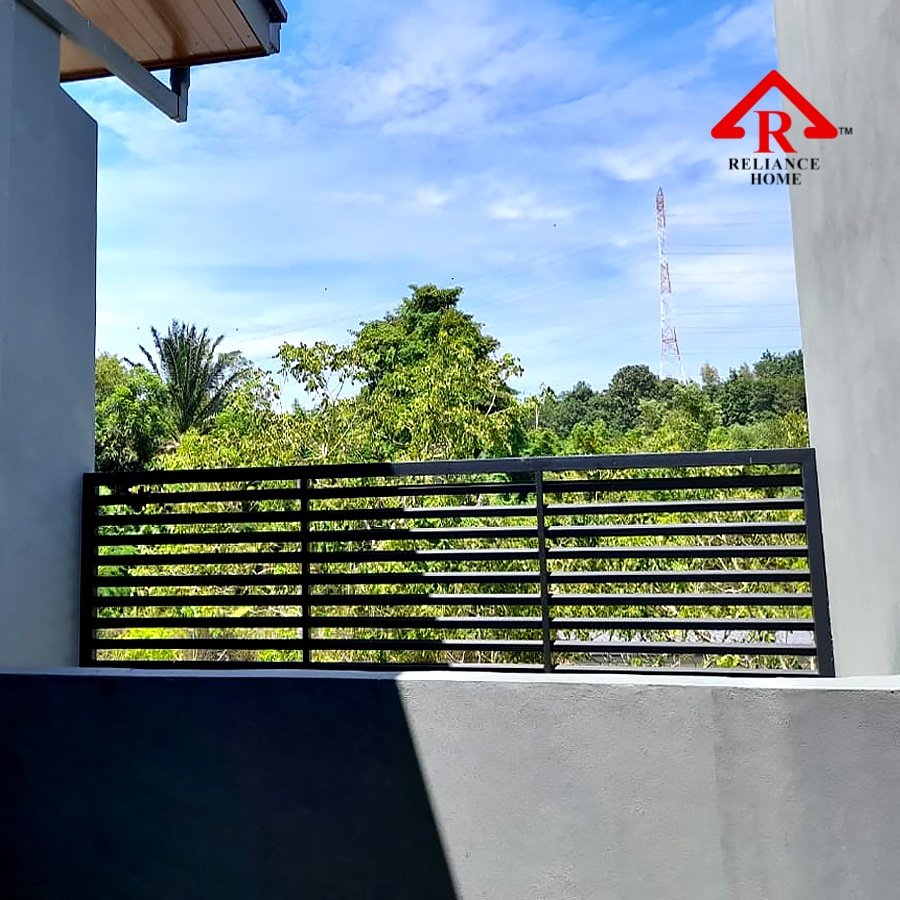

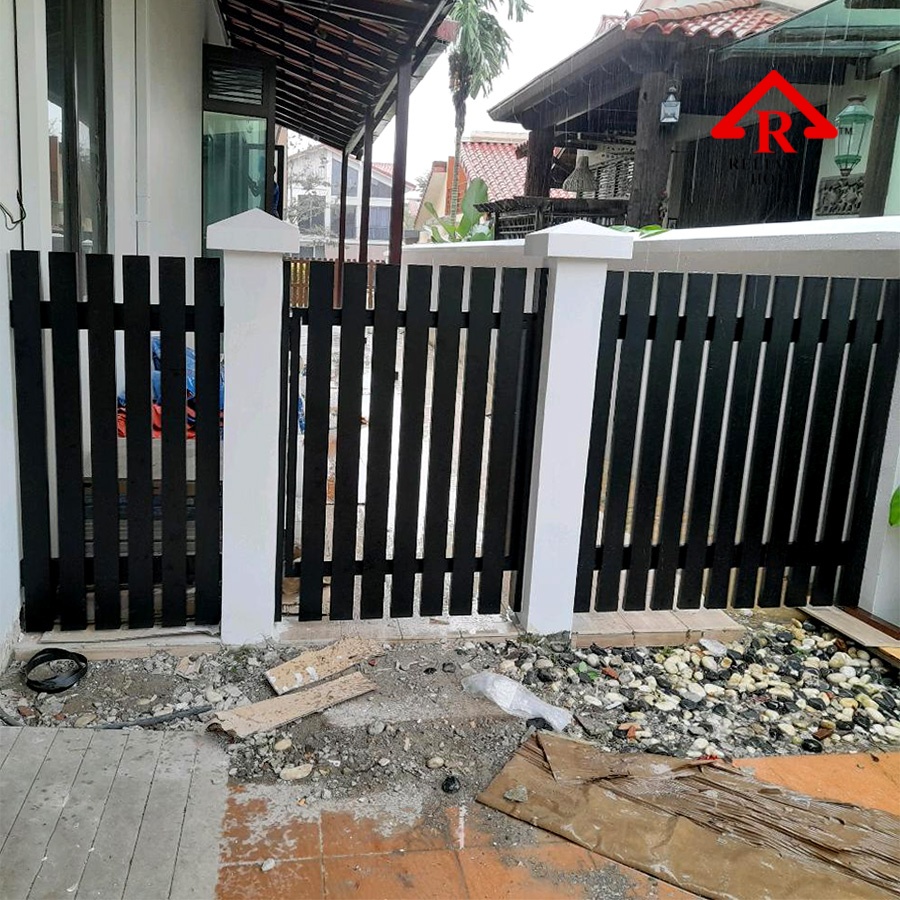

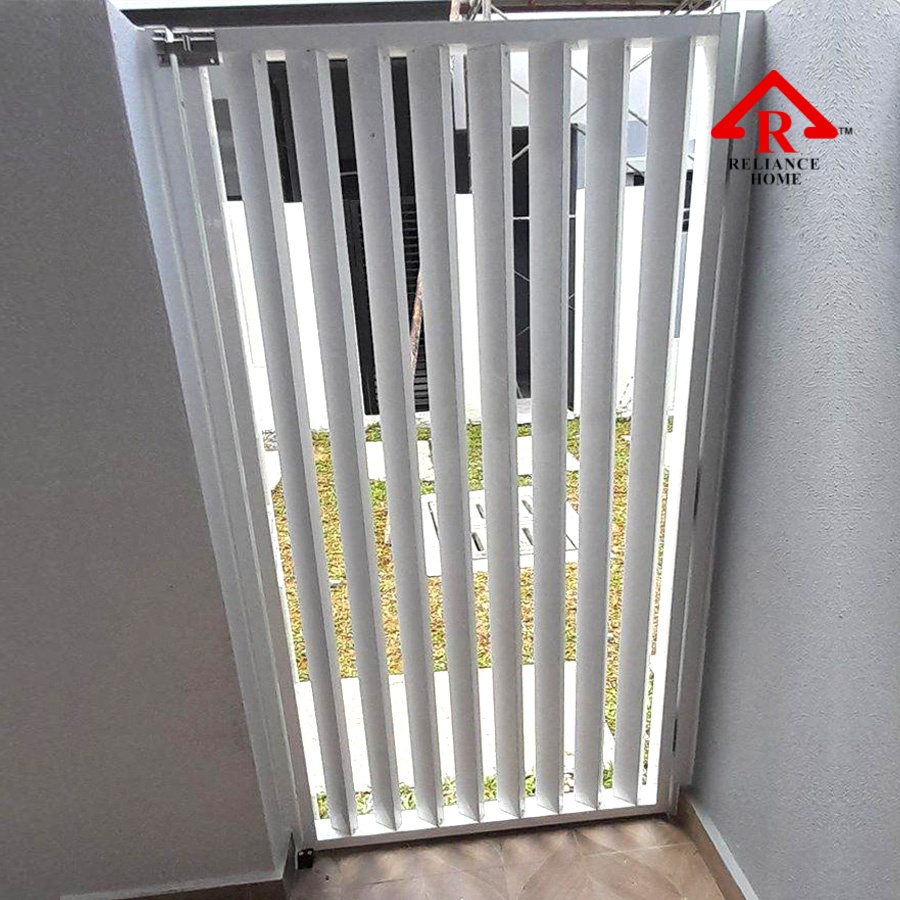

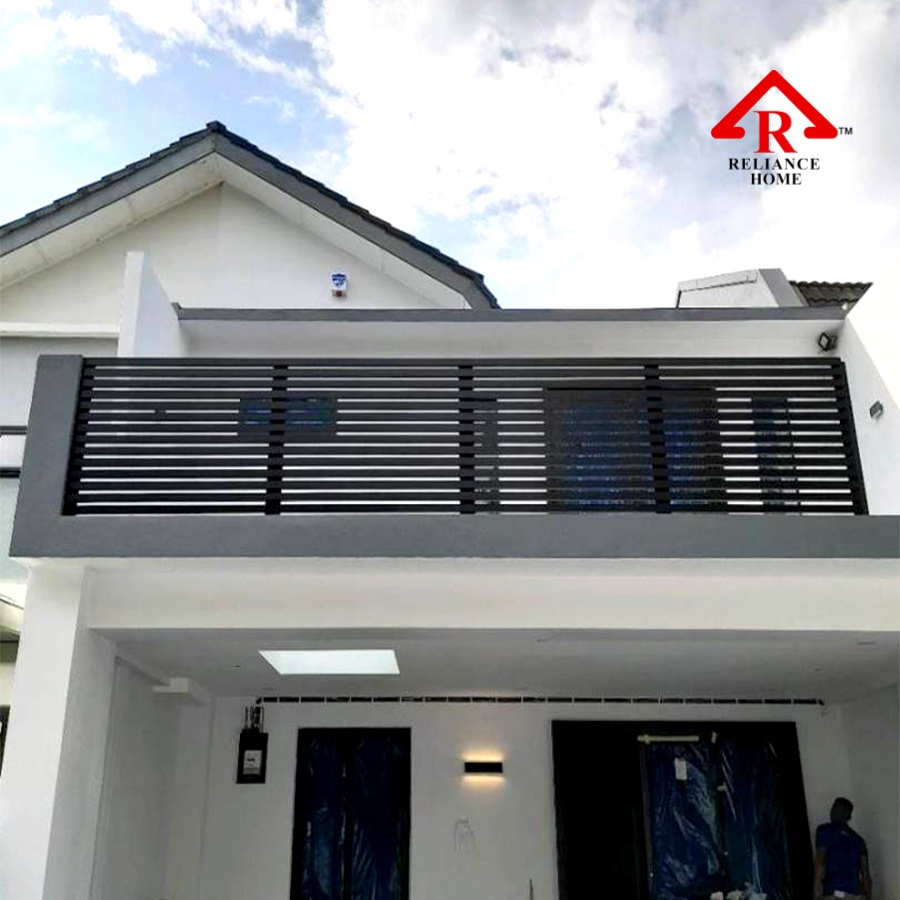

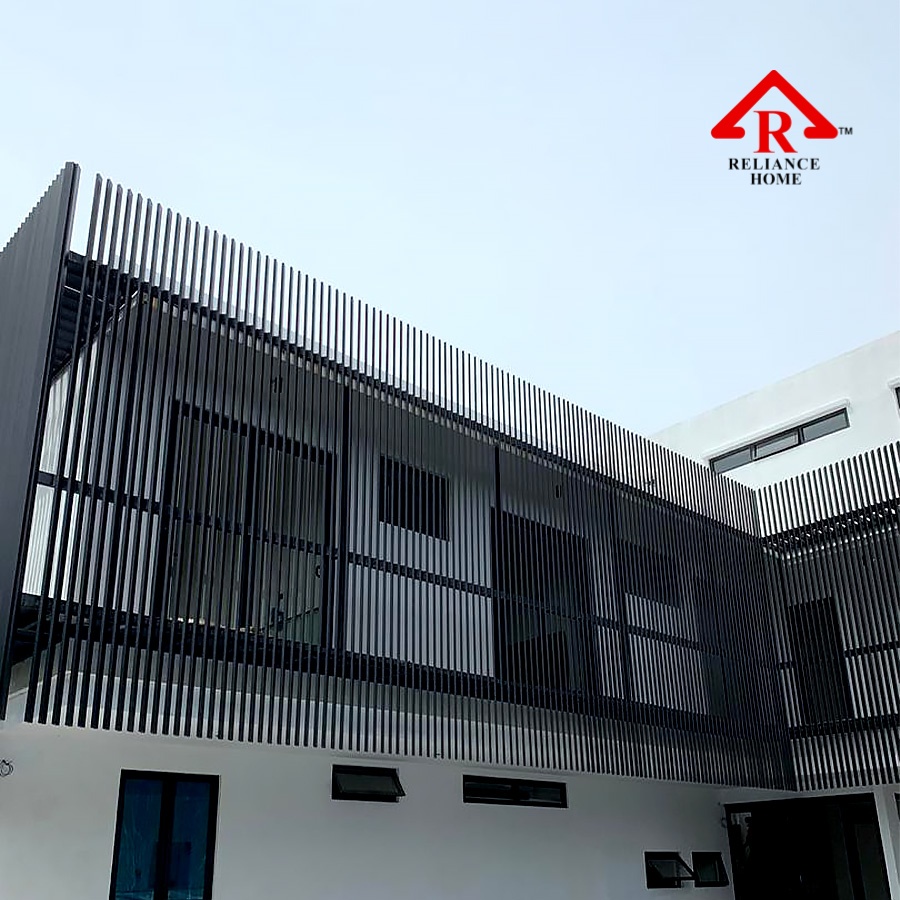

Reliance Home aluminium fencing are custom designed to suit your home or building, and are manufactured using Dupont or Jotun steel or powder-coated aluminium. Reliance Home Aluminium Lourves retain the breeze and natural light while increasing the level of privacy and weather protection with these easy to suit fixed and adjustable lourves in a range of apertures.
Reliance Home external metal & Aluminium Lourves are custom designed to suit your home or building, and are manufactured using COLORBOND steel or powder-coated aluminium.
Choose from a range of custom louvre designs including lattice, slatting and fixed. We provide variety of color choices include the full range of COLORBOND XRW
colours, powdercoat, zincalume, stainless steel or the “woodgrain” finish.

first-img

reliance-home-aluminium-lourves-02

EXTERNAL POWDER COATING TECHNICAL DATA

DESCRIPTION NORM SERIES 1301 SERIES 1303 SERIES 1307 SERIES 1308
Gloss ES ISO 2813 (60) 12 ± 5 30 ± 5 77 ± 7 90 ± 10
Finish Visual Soft Texture Smooth Smooth Smooth
Adhesion EN ISO 2409 (2mm) Cross cut rating GT0 100& Adhesion same same same
Impact Resistance ASTM D2794 (5/8*ball) More than 23 inch-pounds or 2.5Nm without film cracking same same same
Cupping Test EN ISO 1520 Indentation depth in excess of 5mm without film cracking same same same
Flexibility EN ISO 1519 Cylindrical Mandrel bending test, passes 5mm Mandrel diameter same same same
Mortar Resistance ASTM C207 After 24 hours at specific conditions, mortar is easily removed from the coating resulting neither in loss of adhesion nor surface marring same same same
Drilling, milling & sawing test No flaking or coating same same same
Salt spray resistance ASTM B117 No blistering and maximum 1mm corrosion creep from scratch after 3000 hours same same same
Resistance to humid EN ISON 3231 No blistering and maximum 1mm corrosion from scratch after same same same
Film Hardness EN ISO 2815 Indentation resistance according to Buchholtz > 80 same same same

reliance-home-aluminium-lourves-16

reliance-home-aluminium-lourves-18

reliance-home-aluminium-lourves-23
