Aluminium Louvres

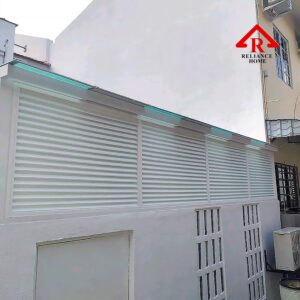

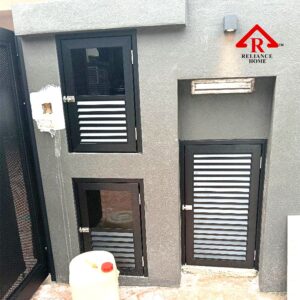

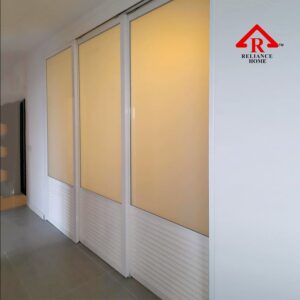

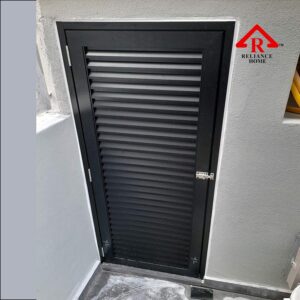

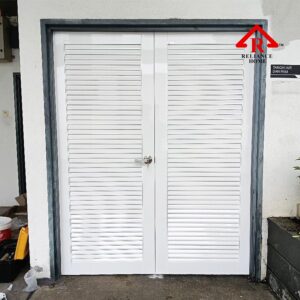

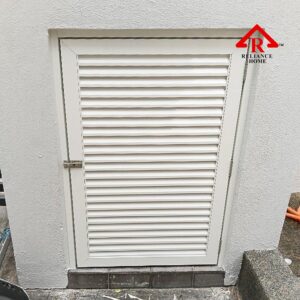

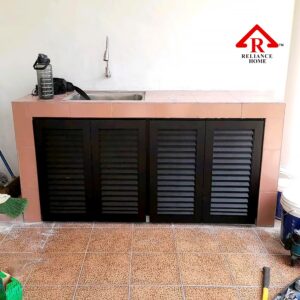

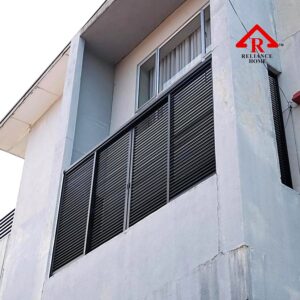

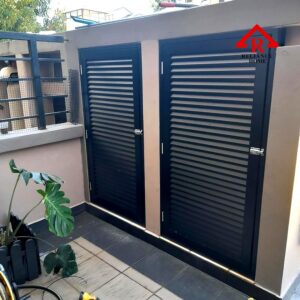

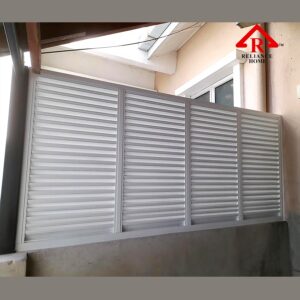

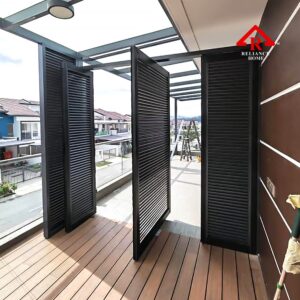

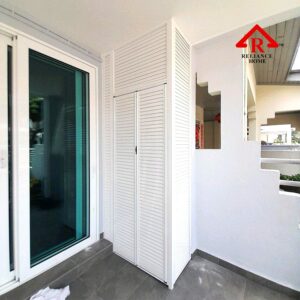

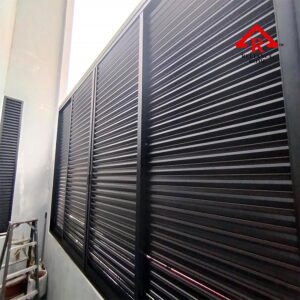

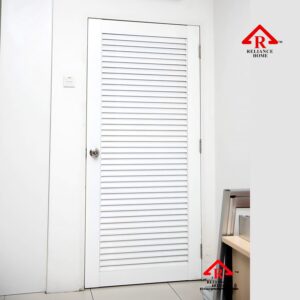

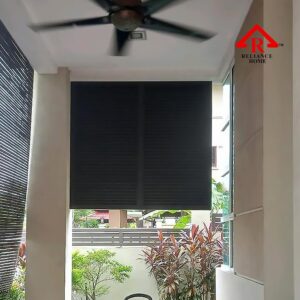

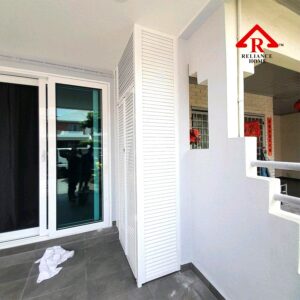

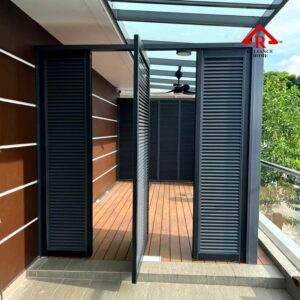

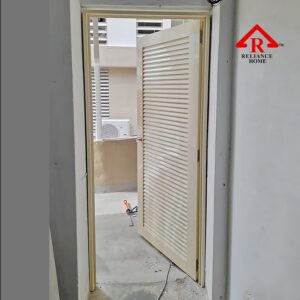

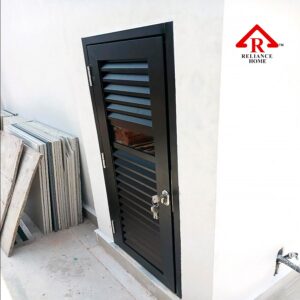

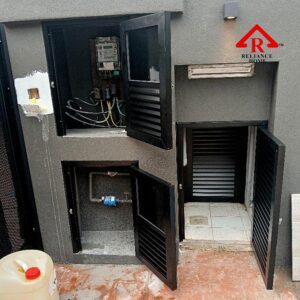

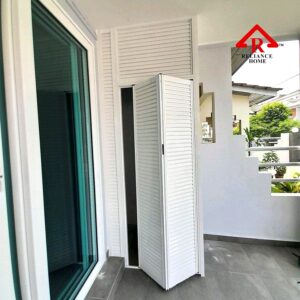

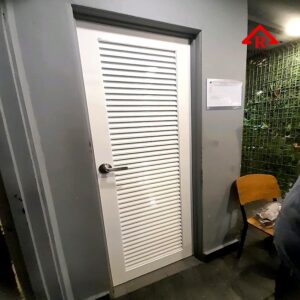

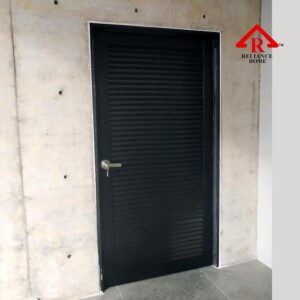

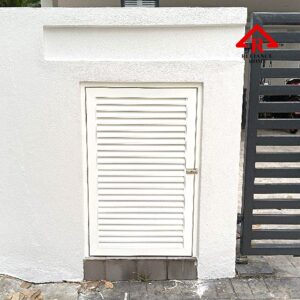

Reliance Home external metal & Aluminium Louvres are custom designed to suit your home or building, and are manufactured using Dupont or Jotun steel or powder-coated aluminium. Reliance Home Aluminium Louvres retain the breeze and natural light while increasing the level of privacy and weather protection with these easy to suit fixed and adjustable louvres in a range of apertures. Reliance Home Aluminum Louvers retain the breeze and natural light while increasing the level of privacy and weather protection with these easy to suit fixed and adjustable louvres in a range of apertures.

Reliance Home Aluminum Louvers retain the breeze and natural light while increasing the level of privacy and weather protection with these easy to suit fixed and adjustable louvers in a range of apertures. Reliance Home external metal & Aluminum Louvers are custom designed to suit your home or building, and are manufactured using COLORBOND steel or powder-coated aluminium. Choose from a range of custom louvre designs including lattice, slatting and fixed. We provide variety of color choices include the full range of COLORBOND XRW colours, powdercoat, zincalume, stainless steel or the “woodgrain” finish.

OVERVIEW

Frame
Aluminum Powder Coated (*using Dupont/ Jotun premium painting coating)

Aluminum Louvres Profile
2’’, 3’’, 4’’,5’’, 6’’

Function
Static

EXTERNAL POWDER COATING TECHNICAL DATA

DESCRIPTION	NORM	SERIES 1301	SERIES 1303	SERIES 1307	SERIES 1308
Gloss	ES ISO 2813 (60)	12 ± 5	30 ± 5	77 ± 7	90 ± 10
Finish	Visual	Soft Texture	Smooth	Smooth	Smooth
Adhesion	EN ISO 2409 (2mm)	Cross cut rating GT0 100& Adhesion	same	same	same
Impact Resistance	ASTM D2794 (5/8*ball)	More than 23 inch-pounds or 2.5Nm without film cracking	same	same	same
Cupping Test	EN ISO 1520	Indentation depth in excess of 5mm without film cracking	same	same	same
Flexibility	EN ISO 1519	Cylindrical Mandrel bending test, passes 5mm Mandrel diameter	same	same	same
Mortar Resistance	ASTM C207	After 24 hours at specific conditions, mortar is easily removed from the coating resulting neither in loss of adhesion nor surface marring	same	same	same
Drilling, milling & sawing test	–	No flaking or coating	same	same	same
Salt spray resistance	ASTM B117	No blistering and maximum 1mm corrosion creep from scratch after 3000 hours	same	same	same
Resistance to humid	EN ISON 3231	No blistering and maximum 1mm corrosion from scratch after	same	same	same
Film Hardness	EN ISO 2815	Indentation resistance according to Buchholtz > 80	same	same	same
