100% Custom Made. Price Inclusive of Delivery & Installation. 2 Years Warranty *Within Klang Valley only
Reliance Home

REHALU

REHALU Shower Screen

REH100SRDESCRIPTION-1

PRODUCT SPECIFICATION

Frame
No Frame/ Frameless

Infil Panel
“GRADE A“10mm Tempered Glass
Reliance Home Tempered Glass is safety glazing material, conforming to the requirements of ASTM C 1048, ANSI 97.1, BS 6206, etc.

sirim

Function
Swing Type

Add Ons (optional)
1. Rubber Seal
2. Shower Screen Handle
3. 6 Types of Header Series
4. Laminated Glass
5. Sandblast Glass

Feature:
Swing In/ Swing Out/ Both Way Swing

Shower Screen Hinge
Brass Chromed or SUS304 Stainless Steel *Upon Request
Being tested by PSB TUV SINGAPORE 50,000 opening cycles

psb-singapore

REH100
Wall To Glass Swing Door Type

Door Space Allocation

door-space

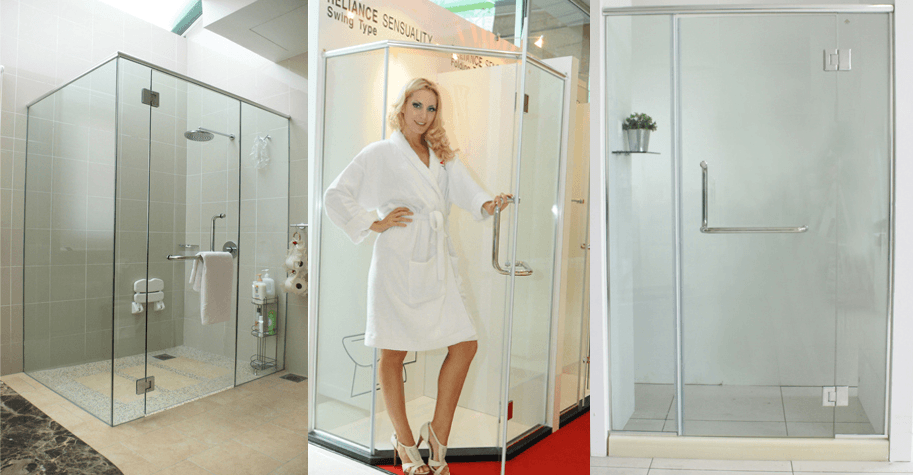

REH Series available in three different shapes: Wall To Wall Shower Screen : Model REH100, REH300; Diamond Shape : Model REH200 and L Shape : REH400. REH Series is the most commonly seen for swing type shower. It comes complete with a full 304 stainless steel top header system and functional Stainless Steel Towel L-Handle. With its simplicity, it has become part of Shower Screen’s legend.

Size
An ideal size for a shower area is minimum 4′ Length and 3′ Depth. Wall To Wall Shower Screen will cover the length to prevent water splashing around while you shower. To do this, you will need to measure the opening between the walls, you can do a quick measure by calculating how many floor tiles it contains between the two walls (Standard tile size is 8 inches, 1 foot and 2 feet). With this measurement, you will be able to choose whether you want 1, 2 or three panel Wall To Wall Shower Screen.The standard height for a Wall to Wall Shower Screen is 1800mm (6 feet), however we can custom made just any size to your liking.

Design
All of our Shower Screen are custom made and our experienced technician will do a site consultation to work out the best solution for you.

For a quick tutorial to how to design a great Wall To Wall Shower Screen, we provide you some tips as below:-

>> If your measurement between the walls is less than 900mm, we will recommend just one piece of door only

>> If your measurement between the walls is between 900mm~1500mm, we will recommend one fix panel and one door panel, which side for the fix and door panel to be placed subject to site allocation for your shower head, bathtub, WC, Basin and floor leveling. This will apply to both Swing Door Type and Sliding Type.

>> If your measurement between the walls is more than 1500mm, we will recommend 1 fix panel at each side with the door at the center. This will become a three-piece Wall To Wall Shower Screen.

Glass Material Type

10MM Tempered Glass
RELIANCE HOME Glass is safety glazing material, conforming to the requirements of ASTM C 1048, ANSI 97.1, BS 6206, etc.

RELIANCE HOME Tempered Glass is more resistant to thermally induced stress and can, therefore, resist thermal shock which can cause ordinary annealed glass to crack.

RELIANCE HOME Tempered Glass is approximately 4 to 5 times stronger than ordinary annealed glass. It has a higher bending strength and is more resistant to impact.

quickguide

Step 1
Choose design of shower screen

1. Wall to Wall Shower Screen (Straight)
2. L Shape (Corner Entry)
3. Pentagon (Diamond Shape)
4. Curve Shape
5. T Shape

Step 2
Choose the direction of opening

(Inward/ Outward/ Both Way Swing)

Step 3
Choose the add ons

1. Rubber Seal
2. Shower Screen Handle
3. 6 Types of Header Series
4. Laminated Glass
5. Sandblast Glass

Step 4
Call us at 03-89623288.

Sit back and relax, our sales team will
take care the rest for you

Header Choice

REH100SQDESCRIPTION-4

Handle Choice

REH100SQDESCRIPTION-5

Model REH100SR – Frameless Wall To Wall Shower Screen Series

REHSR APPLICATION-1

Accessories List

aluminium-uchannel
Aluminium U Channel Glossy Polished
reh100hinge
REH100 Hinge Brass Chromed
a007-headerholder
A007 Header Holder – SUS304 Stainless Steel
a014b
A014B Stainless Steel Bar Holder
l108
L108 Handle Size:275mm x 425mm
headersupport
Header Support Custom Size

RS SERIES Framed Sliding Type

​RS SERIES Aluminium Full Frame Model RS 120 is a shower system designed in Aluminium framework. The sliding door panel is fully framed to achieve 100% water proofing. The aluminium frame comes with a variety of color choices from Original Anodised to many other colors of Powder coating. The infil panel comes with different types such as Polystyrene, Fiberglass and Tempered Glass. RS series is full of freedom of design, no wonder everyone wants to have it.

Size

An ideal size for a shower area is minimum 4′ Length and 3′ Depth. Wall to wall Shower Screen will cover the length to prevent water splashing around while you shower. To do this, you will need to measure the opening between the walls, you can do a quick measure by calculating how many floor tiles it contains between the two walls (Standard tile size is 8 inches, 1 foot and 2 feet). With this measurement, you will be able to choose whether you want 1, 2 or three panel Wall To Wall Shower Screen.The standard height for a Wall To Wall Shower Screen is 1800mm (6 feet), however we can custom made just any size to your liking.

Design

All of our Shower Screen are custom made and our experienced technician will do a site consultation to work out the best solution for you.

For a quick tutorial to how to design a great Wall To Wall Shower Screen, we provide you some tips as below:-

If your measurement between the walls is less than 900mm, we will recommend just one piece of door only
If your measurement between the walls is between 900mm~1500mm, we will recommend one fix panel and one door panel, which side for the fix and door panel to be placed subject to site allocation for your shower head, bathtub, WC, Basin and floor leveling. This will apply to both Swing Door Type and Sliding Type.
If your measurement between the walls is more than 1500mm, we will recommend 1 fix panel at each side with the door at the center. This will become a three-piece Wall to Wall Shower Screen.

Model RS120 : Sliding One-Way or Both Ways

Accessories List

aluminium-uchannel
Aluminium U Channel Glossy Polished
reh100hinge
REH100 Hinge Brass Chromed
a007-headerholder
A007 Header Holder – SUS304 Stainless Steel
a014b
A014B Stainless Steel Bar Holder
l108
L108 Handle Size:275mm x 425mm
headersupport
Header Support Custom Size
