100% Custom Made. Price Inclusive of Delivery & Installation. 2 Years Warranty *Within Klang Valley only
Reliance Home

Sliding Door Malaysia

basic-sliding-door

quickguide

Step 1
Choose design of door

Step 2
Choose types of Colors & Materials

>> Frame Color
>> Infil Panel Choice
> Double Layer Laminated Glass
> Acrylic Panel
> Eco Graphic Panel
> Polystyrene

Step 3
Choose the add ons

> Sliding Door Lock Set

Step 4
Call us at 03-89623288.

Sit back and relax, our sales team will
take care the rest for you

Sliding Door Malaysia

Frame
Aluminum Powder Coated (* using Dupont/ Jotun premiump ainting coating)

Infil Panel
1. 6.38 – 6.78mm Double Layer Laminated Glass (10 color choice) (SAFLEX PVB film imported from USA)
2. 4mm arcylic color panel (13 color choices)
3. Eco Panel * VOC FREE Eco-Friendly panel (> more than 5000 designs)
4. Polystyrene Sheet (18 designs & color choices)
5. Tempered Glass
6. Aluminium Lourves (1/4. 1/2 or Full Lourves)

Function
Folding Type (Inward/Outward)

Sliding Door is often used in Kitchen Door or Toilet Door due to its space maximization. To install a Sliding Door, one must make sure there is a side space for the door to slide along.

Our Sliding Door is also known as suspended door, which the door panel is hung upon the top track to glide along, the main innovation of this door is trackless. which means there is no bottom track to glide this door as compared to the conventional once. Without bottom track, this door is free of track coordination problems. It is much more durable and clean without having to damage your floor caused by the installation of the conventional bottom track.

sl803

sl804

basic-slide-door

Infil Panel Material Type

Bifold Door – Arcylic CollectionBifold DoorArcylic Panel Collection

Arcllic Panel is a plastic panel which is much lighter in weight as compared to glass and Eco Panel glass. It comes with solid color and is cheapest among other materials.

Bifold Door – Laminated Glass CollectionBifold DoorLaminated Glass Collection

Laminated Glass is double layer glass consist of two layer of 3mm normal floated glass sandwiched by a 0.38mm or 0.78mm quality PVB film which holds these two fold glass tightly and non-shatter in the event of breakage. Not only Laminated Glass is non-shatter, it also reduce the transmission of noise, penetration of heat and their colors are very mild and elegant to choose from

ECO PANEL CollectionEco Panel Collection

Eco Panel is also named as “pictured glass” which comes in many graphic design. In Reliance Home, we provide more than 5000 designs to choose from.

Sliding Door is often used in Kitchen Door or Toilet Door due to its space maximization. To install a Sliding Door, one must make sure there is a side space for the door to slide along.

Our Sliding Door is also known as suspended door, which the door panel is hung upon the top track to glide along, the main innovation of this door is- trackless, which means there is no bottom track to glide this door as compared to the conventional one. Without bottom track, this door is free of track coordination problems. It is much more durable and clean without having to damage your floor caused bythe installation of the conventional bottom track.

Same as other doors, Sliding Door is made up of aluminium frame with various choice of infill panel such as: Polystyrene, Acrylic Panel, Fiber glass and Laminated Glass. Our top rollers are made up of industrial nylon, which are heavy duty to support 80kg per panel.

For ideas and advice, look through our Interior Door Buying Guide or our Doors Types Gallery – they’ll help you decide which door best meets your needs

Step 1: Select Space Allocation : Depending on the space allowance, Sliding Door comes in Single Panel, Double Leaf, 3-Panels, 4 Panels and 6 Panels. All have to be in double digits as shown in the photos below:

Step 2: Select model

Step 3: Select Frame Color

Step 4: Select Infill Panel

Sliding Door Technical Drawing – 3D Visual

sliding-door-technical-drawing

Application

sliding door application 1

sliding door application 2

sliding door application 3

Sliding Door Application

2 Tracks
2-leaf
2-tracks

2l-2t

3-leaf joined
2 tracks

3l-2t

Integrated Composite
2 Leaf

integrated-2l

3 leaf independent
2 tracks

3lindependent-2t

4-leaf
2 tracks

4l-2t

4 Tracks
4-leaf
4 tracks

4l-4t

Sliding Door Model

sw820

SW820

sw823

SW823

sw803

SW803

sw843

SW843

sw822

SW822

sw807

SW807

sw804

SW804

sw823a

SW823A

sw831

SW831

sw824

SW824

sw802

SW802

sw825

SW825

sw826

SW826

sw827

SW827

sw828

SW828

sw812

SW812

sw808

SW808

sw824a

SW824A

sw830

SW830

sw813

SW813

sw815

SW815

sw831a

SW831A

sw814

SW814

sw832

SW832

sw831b

SW831B

sw829

SW829

sw853

SW853

sw816

SW816

sw817

SW817

sw806

SW806

sw833

SW833

sw805

SW805

sw837

SW837

sw811

SW811

sw861

SW861

sw810

SW810

sw4055

SW4055

sw4058

SW4058

sw4055

SW4055

sw4049

SW4049

sw1539

SW1539

sw8129

SW8129

sw818

SW818

sw829a

SW829A

sw819

SW819

sw820a

SW820A

sw821

SW821 Full Lourves

sw820b

SW820 1/4 Lourves

Sleek, Simple, Space Saving

1panel

3panel

2panel

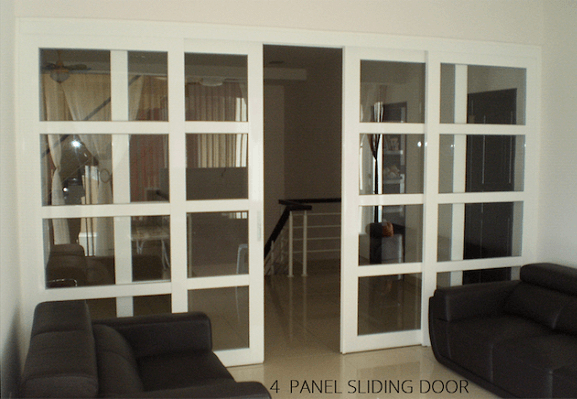

4panel

Swing Door Model

sl4055

SL4055 Kitchen Door

sl801

SL801 Walk In Wardrobe Door

sl801a

SL801 Shoe Room Door

sl1000

SL1000 Toilet Door

sl801b

SL801 Closet Door

sl804

SL804 Kitchen Door

sl804b

SL804 Yard Door

sl818

SL818 Wet/Dry Kitchen

sw811

SW811 Kitchen Door

sw804

SW804 Antijump Wardrobe Door

sfn11819

Study Room Door

sl818a

SL818 Kitchen Door

sl813

SL813 Toilet Door

sw803

SW803 Meeting Room Door

sfn10219

SFN10219 Entertainment Room Door

sl804c

SL804 Study Room Door

sw801

SW801 Living Room To Garden

sw801a

SW801 Room Door

No Bottom Track
Water-proofing
Rust-proof
Heavy Duty Roller
Custom Made
2 Years Warranty
Call us for enquiry at 03-89623288

Sling Door Lockset Choice

a5a6

A5/A6

ym6

YM6

zl102

ZL102

r8

R8 Lock

multislidinglock

MultiSliding Lockset Black & White

chandle

C Handle

l106

L 106

Swing Door Lockset Choice

safetylock

Safety Lock Silver

roundlock

Round Lock Silver/Bronze

leverlock

Lever Lock / Square Lock

sl8504

SL8504 / Square Lock

Sliding Door Fact Sheet

slidingdoor-factsheet

High Quality Powder Coat (Outdoor)

Thicker & better weather resistance Frame coating system

Embedded Handle Lock

Thicker and better wear tear resistance locking system

Quality Aluminium Extrusion

Our sliding door uses highest quality surface finishes. We only use promary aluminium billets, also ensuring constant mechanical properties

Industrial Nylon Roller (Heavy Duty)

Our rollers are made of finest quality nylon with multi labyrinth to provide an effective sealing support.
Maximum Panel Size: 4′ x 8′ high (1220mm x 2438mm H)
Maximum Weight: 80kg

Trackless Door

Our Sliding Door is suspended by 8 heavy duty nylon rollers. Without bottom track, door is free from any coordination gliding problem between top and bottom rack.

Infil Panel Choice

Laminated Glass
Acrylic Panel
Eco Panel Graphic
